steel wires guiding channel double line roll forming machine

Steel Wires Guiding Channel Double Line Roll Forming Machine
1)Processing material:color steel coil with film
2)Material thickness:0.55mm

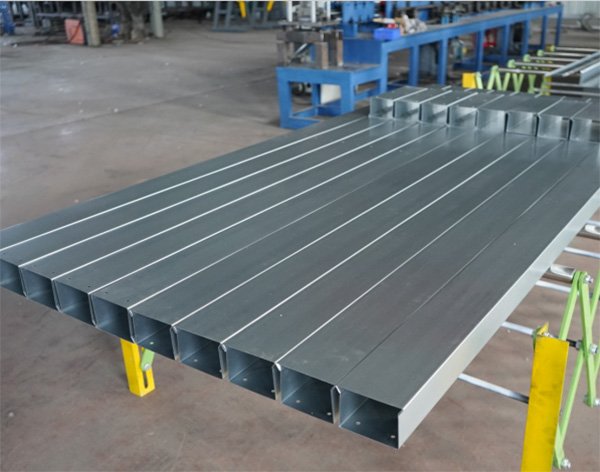

3)Formed sizes:cover profile(as per sample),base profile(as per sample)
4)Main motor power:5.5kw
5)Pump power:4kw+4kw
6)Productivity:10m-20m/min
7)Roller stations:10 steps
8)Roller material:GCr15 steel with chrome plating&vacuum heat treatment
9)Active shaft material:45#steel with high frequency surface treatment and grinding process
10)Shaft diameter:50mm
11)Hydraulic Cutting system:mould cutting,automatic cut to any length you need(two sets)
12)Hydraulic punching system:automatic punching device,can do punching as per the drawing.
(only for the based profile forming line)
13)Cutting&Punching die material:Cr12
14)Machine construction:as per machine photos
15)Transmission type:double chains
16)Control system:Delta transducer,Delta touch screen,Delta PLC
17)Power supply:380V,3 Phase,50Hz(or as per your request)
