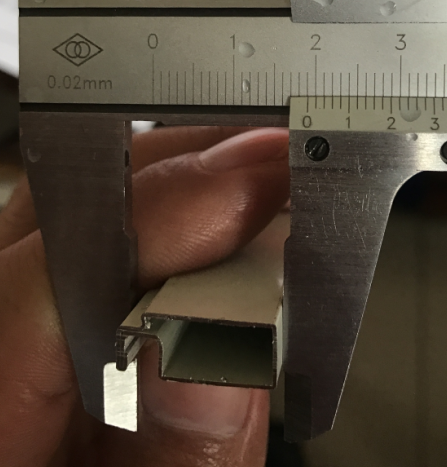

Aluminum Window Screen Frame Roll Forming Machine
1)Processing material:Thickness 0.5mm,65mm width aluminum coil
2)Speed:0m-15m/min
3)Cutter:fly sawing type with servo motor,tracing cut to any length you need
4)Roller stations:22 sets
5)Roller:Cr12 steel with vacuum heat treatment&precise lathing&chrome coating
6)Shaft:Ф40mm,40Cr steel with high frequency surface treatment and grinding process
7)Wall plate:35mm thickness steel block
8)Based frame:Welded by 6mm thick steel plate,
9)Driving mode:GEAR
10)Bearing:Double type
11)Main motor:5.5kw
12)Reducer:ZFY hard surface gear type
13)Hydraulic station:Power:1.5kw+2kw(servo motor)
14)Counter:Omron
15)Control system:SAJ transducer,Xinjie touch screen,Xinjie PLC,Zhengtai for other electric parts
