high speed greenhouse frame roll forming machine

High Speed PPGI Greenhouse Frame Roll Forming Machine
1)Processing material:painting galvanized steel strip
2)Material thickness:0.5mm-1.2mm
3)Formed size on one machine:as per above profile drawing
4)Main motor power:11kw
5)Hydraulic station power:5.5kw
6)Productivity:can up to 35m/min
7)Roller stations:16 steps
8)Roller material:Cr12 steel with vacuum heat treatment HRC57°-60°
9)Active shaft material:45#steel with high frequency surface treatment and grinding process
10)Shaft diameter:Ф50mm
11)Cutting system:tracing cutting with 2.0kw servo motor,automatic cut to any length you need
12)Cutting blade material:Cr12

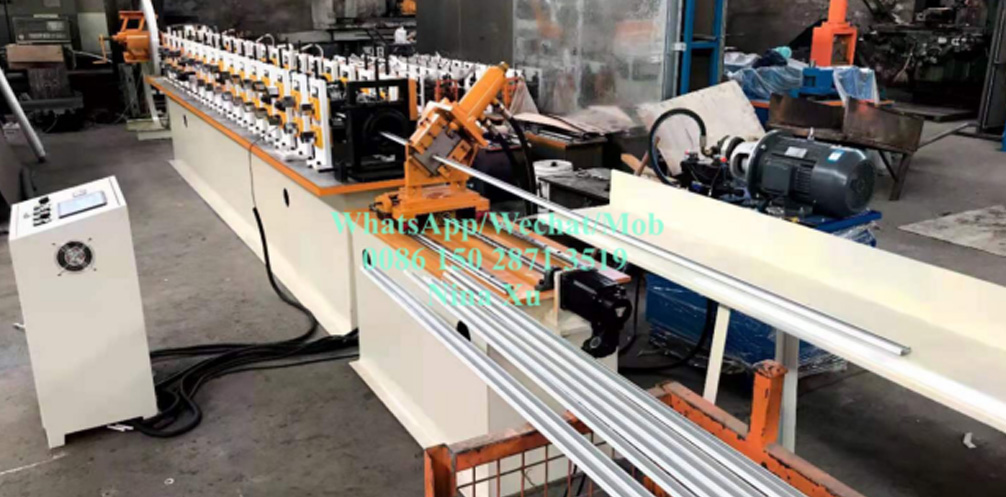

13)Machine construction:as per machine photos
14)Transmission type:gears
15)Control system:separated type
16)Power supply:380V,3 Phase,50Hz(or as per your request)
